RGW法蘭型
RGW系列--滾柱法蘭型線性導軌
RGW系列屬于滾柱型線性導軌，以滾柱型滾動體取代了鋼珠，為實現超高剛性與超重負荷能力而設計；透過滾動體與導軌與滑塊的線接觸方式，讓滾動體在承受高負荷時僅僅形成微量的彈性變形，更藉由45度的接觸角度的設計，讓整體直線導軌達到四方向等高剛性、等高負荷能力的特性表現。透過超高剛性的實現，可大幅提升加工精度，達到高精度的訴求；由于超重負荷的特性，進而延長直線導軌的使用壽命。
注：1kgf=9.81N
|

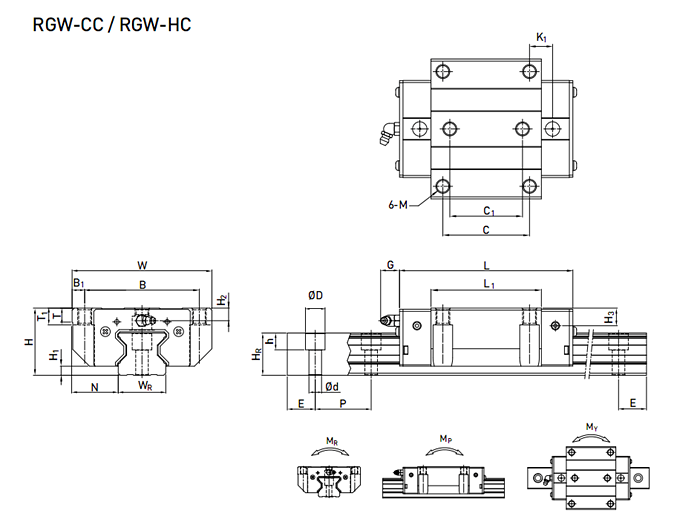

型號 |
組件尺寸 |
滑塊尺寸 |
滑軌尺寸 |
||||||||||||||||||||
|
H |
H1 |
N |
W |
B |
B1 |
C |
L1 |
L |
K1 |
K2 |
G |
M |
T |
H2 |
H3 |
WR |
HR |
D |
h |
d |
P |
E |
|
|
RGW15CC |
24 |
4 |
16 |
47 |
38 |
4.5 |
30 |
45 |
68 |
11.4 |
4.7 |
5.3 |
M5 |
6 |
3.6 |
6.1 |
15 |
16.5 |
7.5 |
5.7 |
4.5 |
30 |
20 |
|
RGW20CC |
30 |
5 |
21.5 |
63 |
53 |
5 |
|
57.5 |
86 |
13.8 |
6 |
5.3 |
M6 |
8 |
4.3 |
4.3 |
20 |
21 |
9.5 |
8.5 |
6 |
30 |
20 |
|
RGW20HC |
77.5 |
106 |
23.8 |
||||||||||||||||||||
|
RGW25CC |
36 |
5.5 |
23.5 |
70 |
57 |
6.5 |
|
64.5 |
97.9 |
15.75 |
7.25 |
12 |
M8 |
9.5 |
6.2 |
6 |
23 |
23.6 |
11 |
9 |
7 |
30 |
20 |
|
RGW25HC |
81 |
114.4 |
24 |
||||||||||||||||||||
|
RGW30CC |
42 |
6 |
31 |
90 |
72 |
9 |
|
71 |
109.8 |
17.5 |
8 |
12 |
M10 |
9.5 |
6.5 |
7.3 |
28 |
28 |
14 |
12 |
9 |
40 |
20 |
|
RGW30HC |
93 |
131.8 |
28.5 |
||||||||||||||||||||
|
RGW35CC |
48 |
6.5 |
33 |
100 |
82 |
9 |
|
79 |
124 |
16.5 |
10 |
12 |
M10 |
12 |
9 |
12.6 |
34 |
30.2 |
14 |
12 |
9 |
40 |
20 |
|
RGW35HC |
106.5 |
151.5 |
30.25 |
||||||||||||||||||||
|
RGW45CC |
60 |
8 |
37.5 |
120 |
100 |
10 |
|
106 |
153.2 |
21 |
10 |
12.9 |
M12 |
14 |
10 |
14 |
45 |
38 |
20 |
17 |
14 |
52.5 |
22.5 |
|
RGW45HC |
139.8 |
187 |
37.9 |
||||||||||||||||||||
|
RGW55CC |
70 |
10 |
43.5 |
140 |
116 |
12 |
|
125.5 |
183.7 |
27.75 |
12.5 |
12.9 |
M14 |
16 |
12 |
17.5 |
53 |
44 |
23 |
20 |
16 |
60 |
30 |
|
RGW55HC |
173.8 |
232 |
51.9 |
||||||||||||||||||||
|
RGW65CC |
90 |
12 |
53.5 |
170 |
142 |
14 |
|
160 |
232 |
40.8 |
12.5 |
12.9 |
M16 |
22 |
15 |
15 |
63 |
53 |
26 |
22 |
18 |
75 |
35 |
|
RGW65HC |
223 |
295 |
72.3 |
||||||||||||||||||||
|
型號 |
滑軌固定螺栓尺寸 |
基本動額定負荷 |
基本靜額定負荷 |
容許靜力矩（KN-m） |
重量 |
|||
|
（mm） |
C（KN） |
C0（KN） |
MR |
MP |
MY |
滑塊 |
導軌/米 |
|
|
RGW15CC |
M4×16 |
11.3 |
24 |
0.311 |
0.173 |
0.173 |
0.22 |
1.8 |
|
RGW20CC |
M5×20 |
21.3 |
46.7 |
0.647 |
0.46 |
0.46 |
0.47 |
2.76 |
|
RGW20HC |
26.9 |
63 |
0.872 |
0.837 |
0.837 |
0.63 |
||
|
RGW25CC |
M6×20 |
27.7 |
57.1 |
0.758 |
0.605 |
0.605 |
0.72 |
3.08 |
|
RGW25HC |
33.9 |
73.4 |
0.975 |
0.991 |
0.991 |
0.91 |
||
|
RGW30CC |
M8×25 |
39.1 |
82.1 |
1.445 |
1.06 |
1.06 |
1.16 |
4.41 |
|
RGW30HC |
48.1 |
105 |
1.846 |
1.712 |
1.712 |
1.52 |
||
|
RGW35CC |
M8×25 |
57.9 |
105.2 |
2.17 |
1.44 |
1.44 |
1.75 |
6.06 |
|
RGW35HC |
73.1 |
142 |
2.93 |
2.6 |
2.6 |
2.40 |
||
|
RGW45CC |
M12×35 |
92.6 |
178.8 |
4.52 |
3.05 |
3.05 |
3.43 |
9.97 |
|
RGW45HC |
116 |
230.9 |
6.33 |
5.47 |
5.47 |
4.57 |
||
|
RGW55CC |
M14×45 |
130.5 |
252 |
8.01 |
5.4 |
5.4 |
5.43 |
13.98 |
|
RGW55HC |
167.8 |
348 |
11.15 |
10.25 |
10.25 |
7.61 |
||
|
RGW65CC |
M16×50 |
213 |
411.6 |
16.20 |
11.59 |
11.59 |
11.63 |
20.22 |
|
RGW65HC |
275.3 |
572.7 |
22.55 |
22.17 |
22.17 |
16.58 |
||
